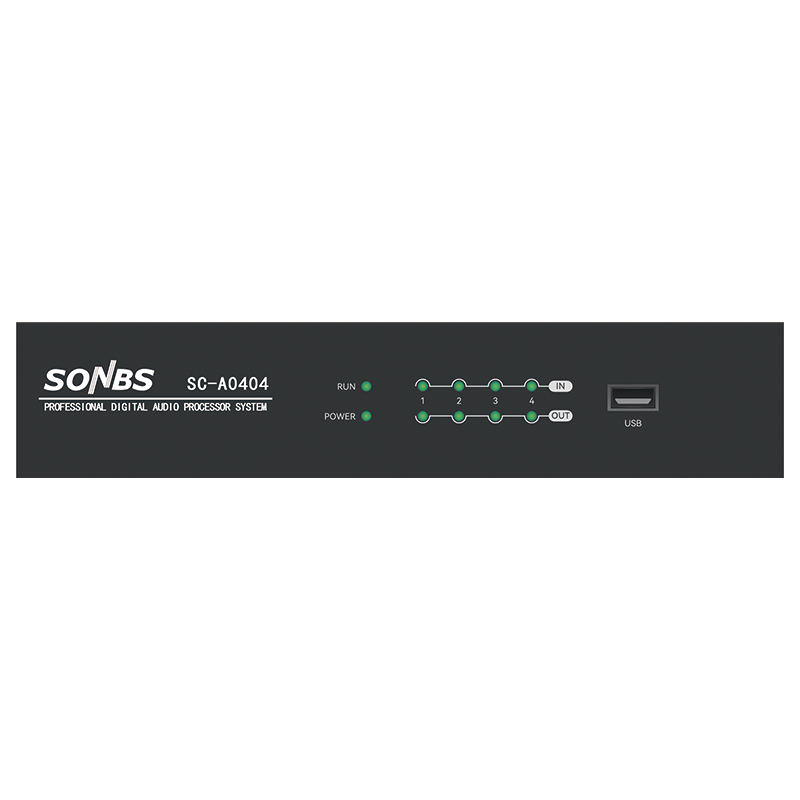

Audio Processor

Lub hom phiaj dav dav digital audio processor, ADI SHARC 21489, zaus 450m Hz, txhawb 4MIC / Line input, txhawb 48V phantom mov, 4 cov kab sib npaug. DSP muaj peev xwm ua tau zoo, Txhua qhov kev tawm tswv yim yog muab nrog cov lus tawm tswv yim, lub rooj vag suab nrov, lub lim dej siab, lub lim dej qis, qhov ncua sij hawm, qhov voltage limiter thiab parametric equalizer (PEQ / High Shelf / Low Shelf ), thiab txhua qhov tso zis tawm yog muab nrog cov lim dej siab, lub lim dej qis, qhov sib npaug parametric (PEQ / High Shelf / Low Shelf), qhov voltage limiter thiab ncua sij hawm. Built-in sine yoj, liab suab nrov, dawb suab nrov teeb liab generator. Cia ntawm ntau qhov chaw presets, customizable daim ntawv lo, 1 TCP/IP kev sib txuas lus chaw nres nkoj, 1 RS{12}} chaw nres nkoj kev sib txuas lus, 1 RS{14}} chaw nres nkoj kev sib txuas lus thiab qhib lwm tus neeg sab nrauv tswj raws tu qauv. Kev txhawb nqa kom ntev lub kov npo tswj vaj huam sib luag ntsia rau ntawm phab ntsa. Koj tuaj yeem teeb tsa lub ntim thiab hu rau hom preset los ntawm phab ntsa tswj vaj huam sib luag. Nws yog siv rau cov rooj sib tham chav, multi-function halls thiab nyob ua yeeb yam.

1. Lub tshuab thev naus laus zis tshiab tshaj plaws, 40 ntsis DSP ntab-taw tes ua haujlwm cav ua haujlwm nti, 24-ntsis A / D thiab D / A hloov dua siab tshiab, suab piv txwv txog li 48 KHz.
2. Plaub qhov sib npaug mic / kab inputs nrog liab qab hlau interface terminals thiab plaub qhov sib npaug tawm nrog liab qab hlau interface terminals muaj.
3. Cov tswv yim tuaj yeem hloov kho raws li qhov sib txawv scene txhawb zog. Peb hom parameter equalization yog txaus siab: 5-seg parameter equalization, 8-seg parameter equalization thiab 12-seg parameter equalization, as well as peb hom graphic equalization Lawv raws li {{3} }seg graphic equalization, 15-segment graphic equalization thiab 31-segment graphic equalization; tawm tswv yim suppression 5-stage feedback inhibition, 8-stage feedback inhibition and 12-stage feedback inhibition
4. Cov zis tuaj yeem raug kho raws li qhov sib txawv scene txhawb zog. Nws txhawb peb hom parameter equalization: 5-seg parameter equalization, 8-segment parameter equalization thiab 12-segment parameter equalization, thiab peb hom graphic equalization. 10- ntu nraaj sib npaug, 15- ntu nraaj sib npaug thiab 31- ntu nraaj sib npaug;
5. Built-in USB suab card, txhawb kev ua si USB audio files, kaw lus thiab lub rooj sib tham tej thaj chaw deb
6. Cov tswv yim: preamplifier, teeb liab generator, expander, compressor, parametric equalizer, tsis siv neeg nce, tawm tswv yim suppressor, thiab lwm yam.
7. Cov zis: nraaj sib npaug, siab thiab qis dhau, ncua sijhawm, limiter, tso zis rau pem hauv ntej thiab thim rov qab, nce kev hloov kho
8. Built-in microphone adaptive feedback cancellation (AFC), digital matrix, tsis siv neeg sib xyaw, ncha tshem tawm, suab nrov.
9. Txhawb marshalling tswj muaj nuj nqi, ntau pab pawg scene presetting, chaw taws teeb tswj muaj nuj nqi, thiab channel luam, muab tshuaj txhuam thiab sib koom ua haujlwm tswj.
10. Cov tswv yim thiab tso tawm cov channel txhawb LINK sib koom ua ke debugging thiab pab pawg txuas kev debugging;
11. Cov cuab yeej txhawb nqa APP tswj thiab txhawb IOS, Android, WINDOWS, thiab lwm yam. Lub APP software txhawb cov neeg siv kev hloov kho, thiab cov txheej txheem tuaj yeem tswj tau los ntawm APP, xws li ntim, preset hu, sab nraud tswj cov cuab yeej thib peb (txhawb RS232, RS485. , UDP, thiab lwm yam), matrix hloov, thiab lwm yam.
12. Lub kaw lus ua ke nrog kev tswj hwm hauv nruab nrab, txhawb nqa RS232, RS485 thiab UDP tswj, thiab tsuas yog tswj qhov projection, kab hlau rhuav, teeb pom kev zoo, kab hlau rhuav, lub zog sib txuas thiab lwm yam khoom siv thib peb.
13. Cov khoom txhawb nqa kev nthuav dav ntawm sab nraud tswj vaj huam sib luag ua haujlwm, nrog tsawg kawg ob hom vaj huam sib luag, uas tuaj yeem paub cov chaw taws teeb tswj ntawm lub processor, xws li ntim, preset hu, kev tswj sab nraud ntawm cov cuab yeej thib peb (txhawb RS232, RS485, UDP, etc.), matrix switching, thiab lwm yam.
14. Cov khoom muaj lub luag haujlwm ntawm lub koob yees duab taug qab, uas tuaj yeem paub lub suab taug qab ntawm 48 V phantom fais fab mov microphone. Qhov sib txuas microphone taug qab yog nyob ntawm lub suab pib. Lub koob yees duab txhawb PELCO _ D, PELCO _ P, VISCA thiab lwm yam kev cai.
15. Lub RS-232 bidirectional serial control interface yog siv los tswj lwm yam khoom siv sab nraud, xws li RS-232 cov khoom siv xws li video matrix, lossis kom tau txais RS thib peb -232 tswj, xws li AMX thiab Crestron.
16. Nrog rau kev ua haujlwm hauv lus Askiv, kev paub zoo thiab cov duab kos software tswj interface, nws tuaj yeem ua haujlwm hauv Windows2000 / XP / Windows7 / Windows 10 system ib puag ncig.
